This document describes some handy things to know when developing the gegl internals. Parts of it is copy-paste of emails on the gegl developer list.

Setting up

Ubuntu 8.10

Setup instructions for Ubuntu 8.10 Intrepid Ibex

To install the mandatory dependencies:

$ sudo apt-get install libtool automake glib libglib2.0-dev libpng12-dev libgtk2.0-dev git

Some of the other dependencies:

$ sudo apt-get install asciidoc enscript libjpeg62 libopenraw graphviz-dev

For running gegl the GEGL_PATH, which is used for dynamically loading the operations, has to be set:

$ export GEGL_PATH=~/Dev/gegl-dev/operations/

BABL

When using a development version of babl, gegl has to know from where to get it. This is done by setting the BABL_LIBS environment variable before (or during as shown below) running gegl’s autogen.sh:

$ ./autogen.sh BABL_LIBS=~/Dev/babl/babl/.libs/libbabl-0.0.so.0.23.0 CFLAGS="-O0"

Then when running the program, the babl library automatically loads extensions that are either located in the BABL_HOME directory or in the default installation directory, in mentioned order of preference.

$ export BABL_HOME=~/Dev/babl/extensions

Netbeans 6.5

There are some key points to consider when setting up GEGL in an IDE (tested on Netbeans):

have to configure the IDE to use the autogen.sh as configure script
normally have to use gegl/bin/.libs/gegl as the executable, not gegl/bin/gegl which is a script.
in some (?) case has to use bin/.libs/lt-gegl as the executable, which is some kind of relinked gegl binary

Debugging

By default gegl and babl uses the flag -g for debug instrumentation, but however it doesn’t use the -O0 flag for turning off optimisations. This leads to unexpected jumps in the code when stepping in a debugger. You have to feed this flag to autogen:

$ ./autogen.sh CFLAGS="-O0"
$ make

Debug output

GEGL has built in mechanisms for logging debug information.

GEGL_NOTE (CACHE, "foo %s", bar);
GEGL_TIMESTAMP(PROCESSOR);
GEGL_MARK()

Where CACHE and PROCESSOR is used the following logging domains are available:

PROCESS, CACHE, BUFFER_LOAD, BUFFER_SAVE, TILE_BACKEND and PROCESSOR

Actual printing of these can be enabled by setting the GEGL_DEBUG environment variable like:

GEGL_DEBUG=processor,cache

or even

GEGL_DEBUG=all

Graphviz export

The gegl library has a utility that permits to export the DAG into a graphviz format. Graphviz is a library that converts graph descriptions in textual format into an image. See graphviz website

It is done using:

#include "../gegl/gegl-dot.h"
/* for printing the dot output, note that gegl_node is a GeglNode pointer */
gchar *dot_output = gegl_to_dot( gegl_node );
printf( "%s\n", dot_output );
g_free( dot_output );

For creating the graph image:

$ gegl --file gaussian-blur.xml --output out.png | dot -Tpng > gb.png

This is the gaussian-blur.xml file:

<?xml version='1.0' encoding='UTF-8'?>
<gegl>
       <node operation='gegl:gaussian-blur'>
               <params>
                       <param name='std-dev-x'>0.999</param>
                       <param name='std-dev-y'>0.999</param>
               </params>
       </node>
       <node operation='gegl:load'>
               <params>
                       <param name='path'>in.png</param>
               </params>
       </node>
</gegl>

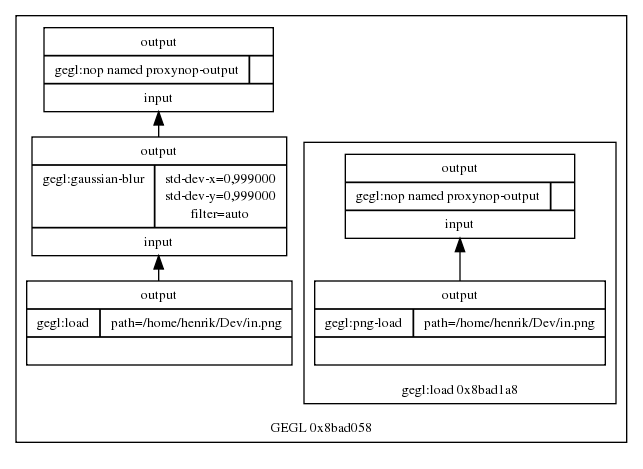

Resulting graph.

You can also just call the function gegl_dot_node_to_png() directly from within gdb to show the graphviz graph of a node and its dependencies.

Tests

There are regression tests in the subfolder "tests". These are run using: make check

Documentation

This document describes how to document GEGL using it’s build system.

There are three utilities used:

asciidoc - used for generating html from text files
enscript - used for converting source files (.c/.h) to html
a home-made ruby script - used for generating api documentation (not yet documented here)

All documentation resources are placed in /doc and the generation is controlled by the file Makefile.am

asciidoc

This example will show how this howto was added.

Add in Makefile.am a new target named documentation-howto.html in the existing list of html files to generate:
```
if HAVE_ASCIIDOC
      HTML_FILES += index.html documentation-howto.html
endif
```

Add in Makefile.am the target:

documentation-howto.html: documentation-howto.txt
if HAVE_ASCIIDOC
       @echo "HTML: $@"
       cp $< $@
       $(ASCIIDOC) --unsafe  -o $@ -a stylesdir=`pwd` -a toc -a theme=gegl -a quirks! $<
else
       @echo "*** asciidoc must be available in order to make dist"
       @false
endif

Create a new documentation-howto.txt file with this content:

== Documentation howto

This document describes how to document GEGL using it's build system.

Type make and the documentation-howto.txt will be converted into documentation-howto.html

enscript

TODO This example will show how a new c/h file is converted into html using enscript

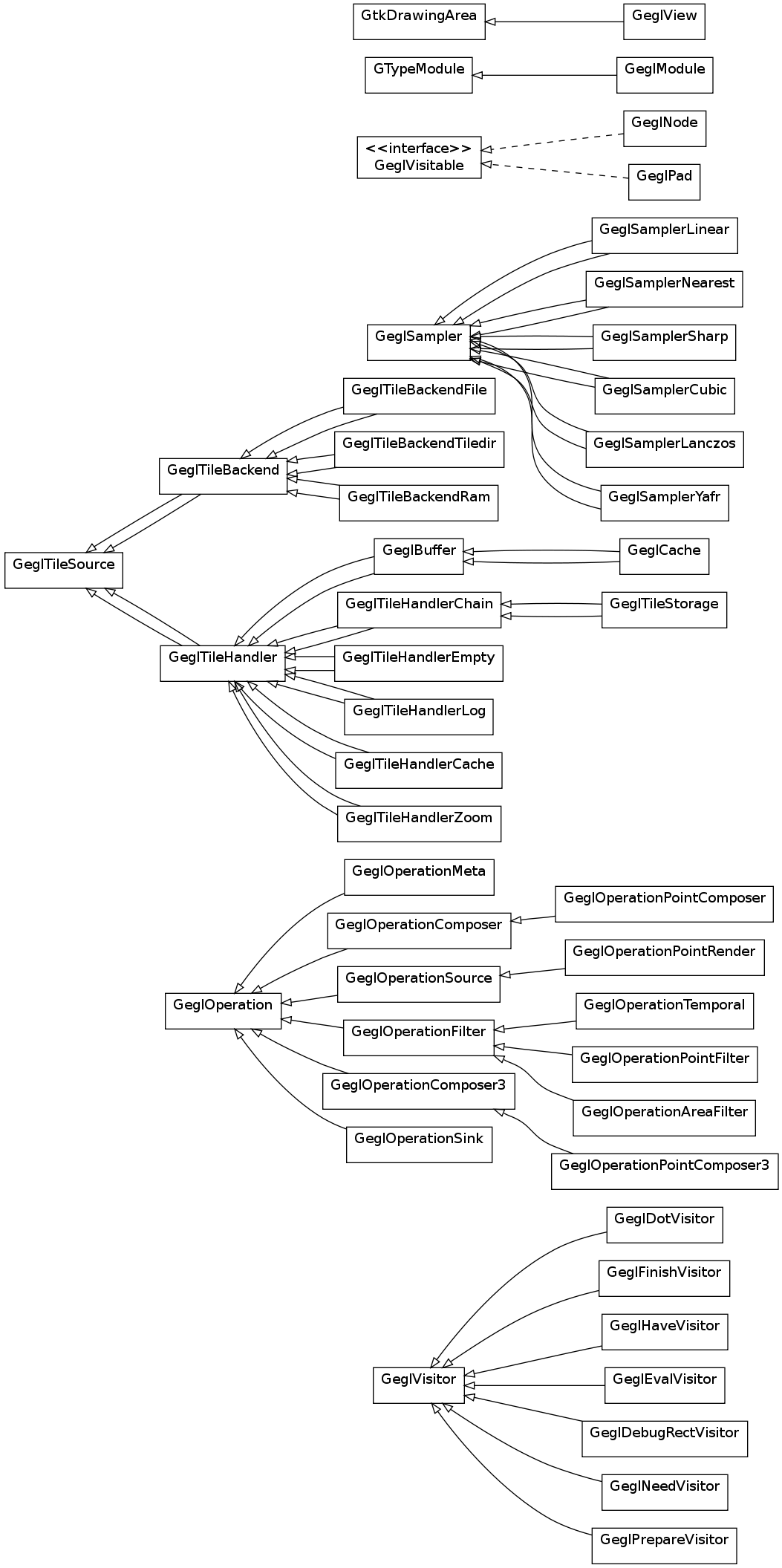

Inheritance tree

Here is an automatically generated inheritance tree of the gobjects used by gegl: GEGL inheritance tree Note that the operations are also gobjects, but they are not included in the inheritance tree.
