“Any sufficiently advanced technology is indistinguishable from magic.”

--Arthur C. Clarke

Algorithms for automatic adjustments attempts to automatically enhance the perceptual quality of an image. Such algorithms are usually used to enhance the perceived quality of images.

Digital cameras, often use such algorithms after aquisition, to make the most out of the data captured by the light sensor.

Companies providing print services for consumers, both developing analog film and scanning it; as well as companies making prints directly from digital files. The selection and tuning of parameters are based on automatically categorizing the image as a portrait, landscape, sunset/sunrise etc.

To achieve the best results possible, manual tuning and adjustments are
often needed, but for a normal private use, like holiday pictures
automatic enhancements makes higher quality easy, and *point and
shoot photography* possible.

Contrast stretching makes sure the input sample with the lowest value is mapped to black; and that the one with the highest to 1.0. The values are recalculated by using linear interpolation.

Contrast stretching automatically counters under and over exposure, as well as the ability to extend the used luminance range.

It is also possible to restrict the algorithm towards the center of the distribution, perhaps with a cut-off value, this allows for a more noise tolerant adjustment.

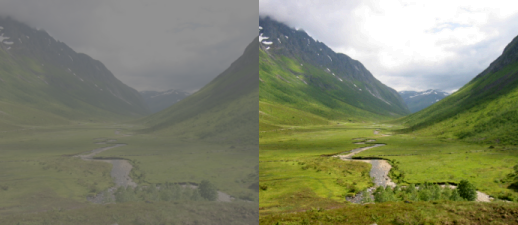

**Figure 7.1. contrast stretching**

function get_min_max() min, max = 1000, -1000 for y=0, height-1 do for x=0, width-1 do value = get_value(x,y) if value<min then min = value end if value>max then max = value end end end return min,max end function remap(v, min, max) return (v-min) * 1.0/(max-min) end function cs_get_rgb(x,y,min,max) r,g,b = get_rgb(x,y) r = remap(r, min, max) g = remap(g, min, max) b = remap(b, min, max) return r,g,b end function contrast_stretch() min, max = get_min_max() for y=0, height do for x=0, width do set_rgb(x,y, cs_get_rgb(x,y,min,max)) end end flush () end contrast_stretch()

In the day of analog point and shoot photography, the white balance of the images were set by the photolab. With digital photography the whitebalance has to either be pre set by the photographer by measurement or guess, or be guessed by algorithms in camera or computer software.

Assuming that we have a good distribution of colors in our scene, the average reflected color should be the color of the light. If the light source is assumed to be white, we know how much the whitepoint should be moved in the color cube.

The compensation calculated by the gray world assumption is an approximation of the measurement taken by digital still and video cameras by capturing an evenly lit white sheet of paper or similar.

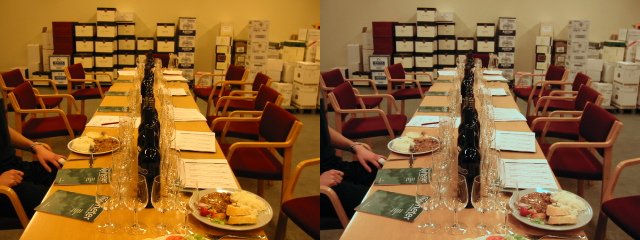

**Figure 7.2. grayworld assumption**

function get_avg_a_b () sum_a=0 sum_b=0 -- first find average color in CIE Lab space for y=0, height-1 do for x=0, width-1 do l,a,b = get_lab(x,y) sum_a, sum_b = sum_a+a, sum_b+b end progress(y/height) end avg_a=sum_a/(width*height) avg_b=sum_b/(width*height) return avg_a,avg_b end function shift_a_b(a_shift, b_shift) for y=0, height do for x=0, width do l,a,b = get_lab(x,y) -- scale the chroma distance shifted according to amount of -- luminance. The 1.1 overshoot is because we cannot be sure -- to have gotten the data in the first place. a_delta = a_shift * (l/100) * 1.1 b_delta = b_shift * (l/100) * 1.1 a,b = a+a_delta, b+b_delta set_lab(x,y,l,a,b) end progress(y/height) end flush() end function grayworld_assumption() avg_a, avg_b = get_avg_a_b() shift_a_b(-avg_a, -avg_b) end grayworld_assumption()

Component stretching makes the assumption that either direct reflections, or glossy reflections from surfaces can be found in the image, and that it is amongst the brightest colors in the image. By stretching each R,G and B component to it's full range, as in the section called “Contrast stretching” often leads to a better result than grayworld assumption.

If the image is overexposed, this technique does not work, not having a very reflective object will also bias the results in a non desireable way.

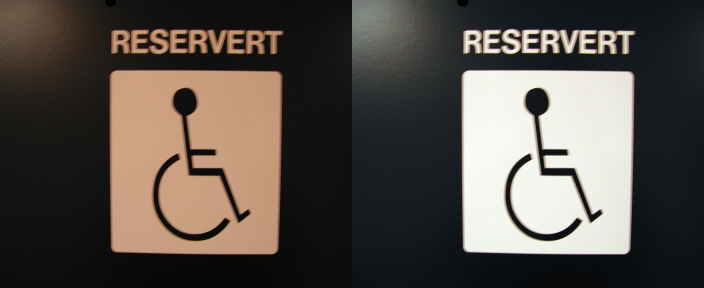

**Figure 7.3. component stretching**

function get_min_max_r () min, max = 1000, -1000 for y=0, height-1 do for x=0, width-1 do value, temp, temp = get_rgb (x,y) if value<min then min = value end if value>max then max = value end end end return min,max end function get_min_max_g () min, max = 1000, -1000 for y=0, height-1 do for x=0, width-1 do temp, value, temp = get_rgb (x,y) if value<min then min = value end if value>max then max = value end end end return min,max end function get_min_max_b () min, max = 1000, -1000 for y=0, height-1 do for x=0, width-1 do temp, temp, value = get_rgb (x,y) if value<min then min = value end if value>max then max = value end end end return min,max end function remap(v, min, max) return (v-min) * 1.0/(max-min) end function cs_get_rgb(x,y,min_r,max_r,min_g,max_g,min_b,max_b) r,g,b = get_rgb(x,y) r = remap(r, min_r, max_r) g = remap(g, min_g, max_g) b = remap(b, min_b, max_b) return r,g,b end function component_stretch() min_r, max_r = get_min_max_r () min_g, max_g = get_min_max_g () min_b, max_b = get_min_max_b () for y=0, height do for x=0, width do set_rgb(x,y, cs_get_rgb(x,y,min_r,max_r, min_g, max_g, min_b, max_b)) end end flush () end component_stretch()

ACE is an algorithm that performs contrast stretching based on statistical data taken from the neighbourhood of the pixel being processed, this allows for extending the dynamic range of an image based on local features, this is a process often found useful in medical images. The algorithm makes it possible to see things hidden in darkness in one area of an image, without destroying the details in another.

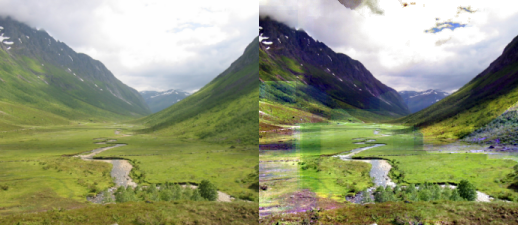

**Figure 7.4. ace**

edge_duplicate = 1; function get_min_max (x0,y0,x1,y1) min_r, max_r = 1000, -1000 min_g, max_g = 1000, -1000 min_b, max_b = 1000, -1000 for y=y0,y1 do for x=x0,x1 do r, g, b= get_rgb (x,y) if r<min_r then min_r = r end if r>max_r then max_r = r end if g<min_g then min_g = g end if g>max_g then max_g = g end if b<min_b then min_b = b end if b>max_b then max_b = b end end end return min_r,max_r,min_g,max_g,min_b,max_b end function remap(v, min, max) return (v-min) * 1.0/(max-min) end function ace_get_rgb(x,y,radius) min_r, max_r, min_g, max_g, min_b, max_b = get_min_max (x-radius,y-radius,x+radius,y+radius) r,g,b = get_rgb(x,y) r = remap(r, min_r, max_r) g = remap(g, min_g, max_g) b = remap(b, min_b, max_b) return r,g,b end function ace(radius) for y=0, height do for x=0, width do set_rgb(x,y, ace_get_rgb(x,y,radius)) end progress (y/height) print (y/height) end flush () end ace(32)

Note | |
---|---|

This implementation of ACE doesn't really show the potential of the algorithm, a better test image, and an implementation that has received more care would be preffered, see also exercise 1. |

The artifacts appearing in Figure 7.4, “ace” are due to the sampling of the pixels used to find the maximum and minimum values to do contrast stretching with. How can the ACE filter be improved to give a smoother appearance?
